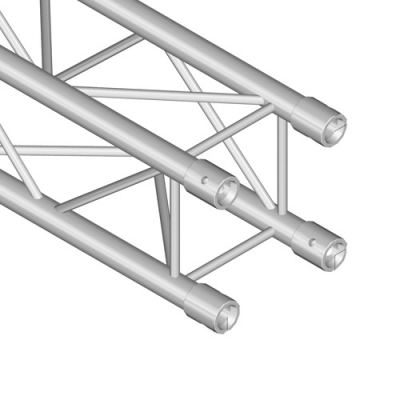

PRO364

view specifications
  • PRO364C210

    PRO364C210

  • PRO364C300

    PRO364C300

  • PRO364C350

    PRO364C350

  • PRO364C410

    PRO364C410

  • PRO364L500

    PRO364L500

  • PRO364L1000

    PRO364L1000

  • PRO364L2000

    PRO364L2000

  • PRO364L2500

    PRO364L2500

  • PRO364L3000

    PRO364L3000

  • PRO364L4000

    PRO364L4000

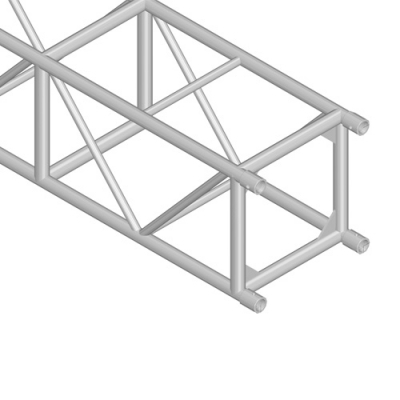

PRO524

view specifications
  • PRO524BLOCK

    PRO524BLOCK

  • PRO524L500

    PRO524L500

  • PRO524L1000

    PRO524L1000

  • PRO524L2000

    PRO524L2000

  • PRO524L2500

    PRO524L2500

  • PRO524L3000

    PRO524L3000

  • PRO524L4000

    PRO524L4000

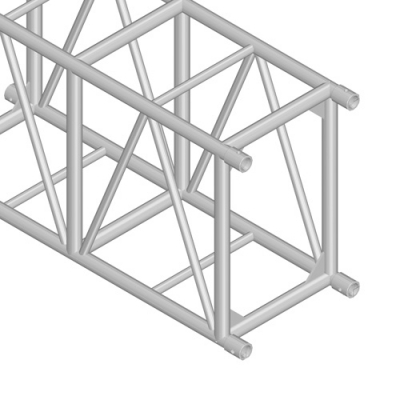

PRO764

view specifications
  • PRO764BLOCK

    PRO764BLOCK

  • PRO764L500

    PRO764L500

  • PRO764L1000

    PRO764L1000

  • PRO764L1500

    PRO764L1500

  • PRO764L2000

    PRO764L2000

  • PRO764L2500

    PRO764L2500

  • PRO764L3000

    PRO764L3000

  • PRO764L4000

    PRO764L4000

Accessories Heavy System

  • Spigot big

    Spigot big

  • Pin big

    Pin big

PRO364

Loading table 4m 6m 8m 10m 12m 14m 16m
Point load (kg) 1119,0 1100,0 1000,0 801,0 600,0 510,0 420,0
Deflection (mm) 6,3 16,8 36,8 55,2 70,6 64,8 78,3
UDL (kg/m) 975,0 447,0 292,0 141,0 105,0 66,0 40,0
Deflection (mm) 12,3 27,0 46,4 68,0 89,1 107,1 119,4


Main tube 50 x 4 mm
Braces 25 x 3 mm
Alloy EN-AW 6082 T6 (AIMgSi1 T6)

PRO524

Loading table 6m 8m 10m 12m 14m 16m 18m 20m
Point load (kg) 1600,0 1405,0 1240,0 1098,0 969,0 840,0 711,0560,0
Deflection (mm) 11,6 23,5 34,5 54,3 71,6 94,0 110,3130,0
UDL (kg/m) 800,0 514,0 320,0 207,0 144,0 100,0 96,044,0
Deflection (mm) 21,3 39,1 53,0 74,2 89,6 108,0 116,5126,0


Main tube 50 x 4 mm
Braces 30 x 3 mm
Alloy EN-AW 6082 T6 (AIMgSi1 T6)

PRO764

Loading table 6m 8m 10m 12m 14m 16m 18m 20m22m24m
Point load (kg) 2000,0 1810,0 1585,0 1440,0 1297,0 1200,0 1188,0 1049,0991,0840,0
Deflection (mm) 9,1 16,3 25,6 36,4 50,5 66,2 87,1103,9126,0147,0
UDL (kg/m) 720,0 557,0 364,0 300,0 192,0 149,0 128,097,081,060,0
Deflection (mm) 11,3 23,4 34,7 34,7 62,7 79,4 101,0117,5139,2156,0


Main tube 50 x 4 mm
Braces 30 x 3 mm
Alloy EN-AW 6082 T6 (AIMgSi1 T6)

Accessories Heavy System

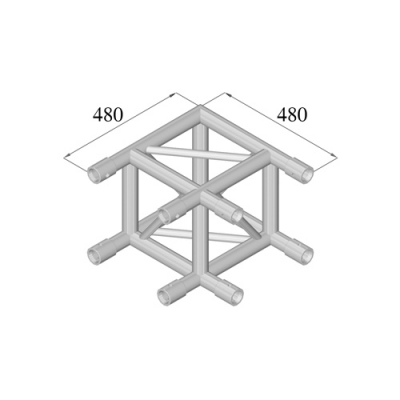

PRO364C210

PRO364C210

2 way corner 90°
Weight 11,7 kg

Contact us

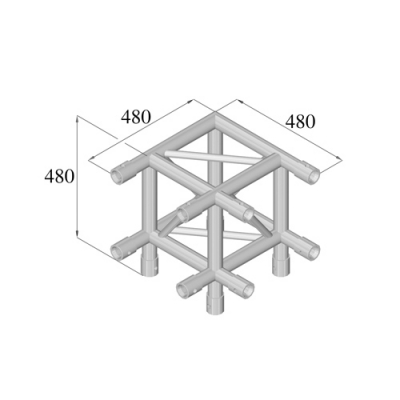

PRO364C300

PRO364C300

3 way corner 90°
Weight 13,0 kg

Contact us

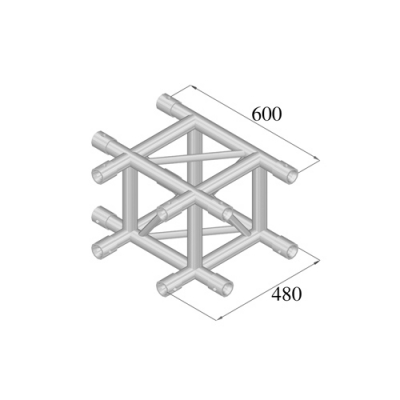

PRO364C350

PRO364C350

3 way T piece
Weight 13,0 kg

Contact us

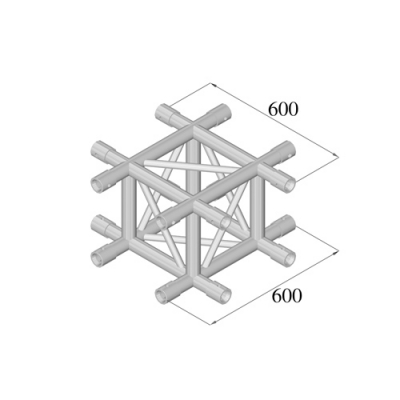

PRO364C410

PRO364C410

4 way cross piece
Weight 18,0 kg

Contact us
PRO364L500

PRO364L500

Pro-truss Pro 364 L500 Straight 500 mm

Contact us
PRO364L1000

PRO364L1000

Pro-truss Pro 364 L1000 Straight 1000 mm

Contact us
PRO364L2000

PRO364L2000

Pro-truss Pro 364 L2000 Straight 2000 mm

Contact us
PRO364L2500

PRO364L2500

Pro-truss Pro 364 L2500 Straight 2500 mm

Contact us
PRO364L3000

PRO364L3000

Pro-truss Pro 364 L3000 Straight 3000 mm

Contact us
PRO364L4000

PRO364L4000

Pro-truss Pro 364 L4000 Straight 4000 mm

Contact us

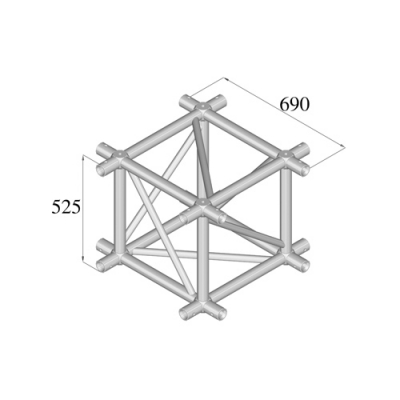

PRO524BLOCK

PRO524BLOCK

6 way universal cross beam
Weight 19,1 kg

Contact us
PRO524L500

PRO524L500

Pro-truss Pro 524 L500 Straight 500 mm

Contact us
PRO524L1000

PRO524L1000

Pro-truss Pro 524 L1000 Straight 1000 mm

Contact us
PRO524L2000

PRO524L2000

Pro-truss Pro 524 L2000 Straight 2000 mm

Contact us
PRO524L2500

PRO524L2500

Pro-truss Pro 524 L2500 Straight 2500 mm

Contact us
PRO524L3000

PRO524L3000

Pro-truss Pro 524 L3000 Straight 3000 mm

Contact us
PRO524L4000

PRO524L4000

Pro-truss Pro 524 L4000 Straight 4000 mm

Contact us

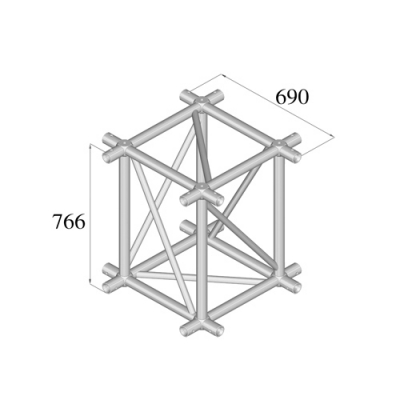

PRO764BLOCK

PRO764BLOCK

6 way universal cross beam
Weight 28,6 kg

Contact us
PRO764L500

PRO764L500

Pro-truss Pro 764 L500 Straight 500 mm

Contact us
PRO764L1000

PRO764L1000

Pro-truss Pro 764 L1000 Straight 1000 mm

Contact us
PRO764L1500

PRO764L1500

Pro-truss Pro 764 L1500 Straight 1500 mm

Contact us
PRO764L2000

PRO764L2000

Pro-truss Pro 764 L2000 Straight 2000 mm

Contact us
PRO764L2500

PRO764L2500

Pro-truss Pro 764 L2500 Straight 2500 mm

Contact us
PRO764L3000

PRO764L3000

Pro-truss Pro 764 L3000 Straight 3000 mm

Contact us
PRO764L4000

PRO764L4000

Pro-truss Pro 764 L4000 Straight 4000 mm

Contact us

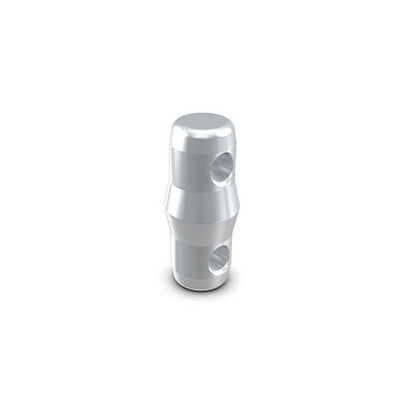

Spigot big

Spigot big

Spigot big

Contact us

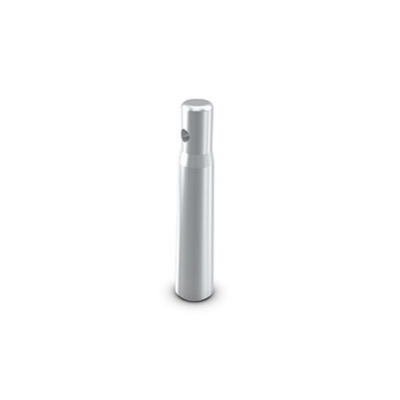

Pin big

Pin big

Pin big

Contact us
