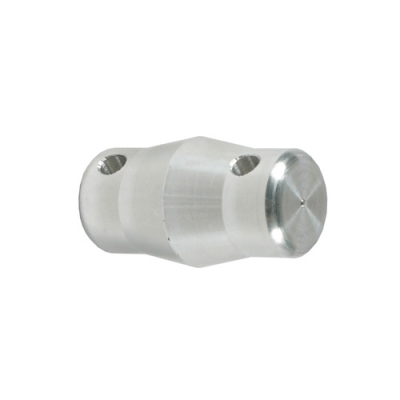

  • PROSPIGOTK

    PROSPIGOTK

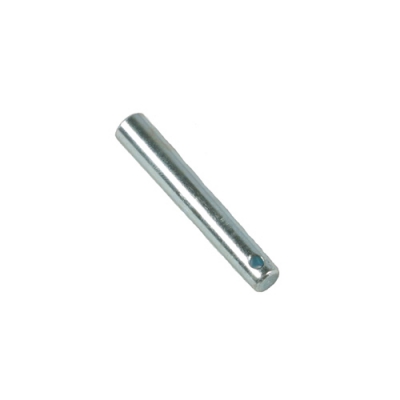

  • PROPINK

    PROPINK

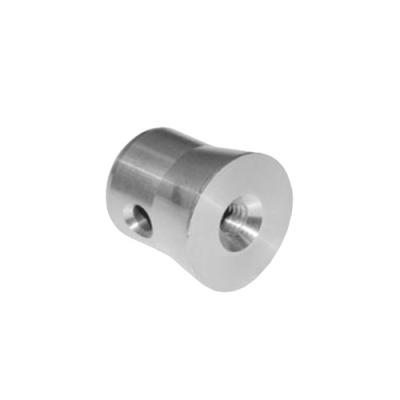

  • pro halfconnector

    pro halfconnector

  • PRO ENDCAP

    PRO ENDCAP

Pro14

Loading table 2m 4m 6m 8m 10m
Point load (kg) 73,4
 43,8
 31,2
 24,2
 19,8
Deflection (mm) 2,4
 11,2
 27
 49,8
 79,5
UDL (kg/m) 102,1
 26,7 11,9 6,8 4,3
Deflection (mm) 4,1 17,1 38,9 69,4 108,6


Main tube 20 x 2 mm
Braces 6 mm
Alloy EN-AW 6082 T66 (AIMgSi0,5 T66)

Pro22

Loading table 2m 4m 6m 8m 10m 12m
Point load (kg) 196
 129
 96
 63
 44
33
Deflection (mm) 1,3
 3
 5,4
 12,6
 22,9
36,7
UDL (kg/m) 101
 67
 48
 21
 11
7
Deflection (mm) 0,9
 2,9
 6,6
 15,5
 27,7
43,6


Main tube 35 x 2 mm
Braces 10 x 2 mm
Alloy EN-AW 6060 T66 (AIMgSi0,5 T66)

Pro23

Loading table 2m 4m 6m 8m 10m 12m
Point load (kg) 262
 171
 127
 81
 56
 41
Deflection (mm) 1,8
 4
 7,2
 16,5
 30
 48,3
UDL (kg/m) 175
 114
 64
 27
 14
 8
Deflection (mm) 1,5
 4,9
 8,9
 20,1
 36
 56,8


Main tube 35 x 2 mm
Braces 10 x 2 mm
Alloy EN-AW 6060 T66 (AIMgSi0,5 T66)

Pro24

Loading table 2m 4m 6m 8m 10m 12m
Point load (kg) 405
 354
 286
 195
 141
 107
Deflection (mm) 1,4
 4,1
 7,9
 18,7
 33,7
 53,6
UDL (kg/m) 202
 134
 100
 65
 35
 21
Deflection (mm) 0,9
 2,9
 6,9
 23,1
 41,3
 64,8


Main tube 35 x 2 mm
Braces 10 x 2 mm
Alloy EN-AW 6060 T66 (AIMgSi0,5 T66)

Accessories PRO22-24

PRO14block

PRO14block

Corner block
Weight 0,6 kg

Contact us

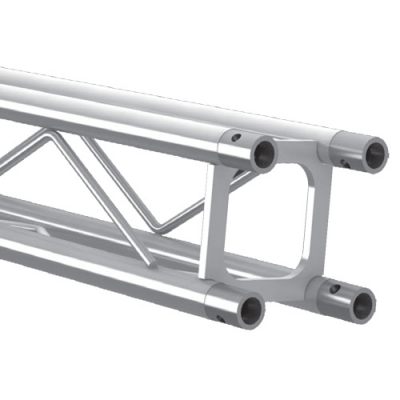

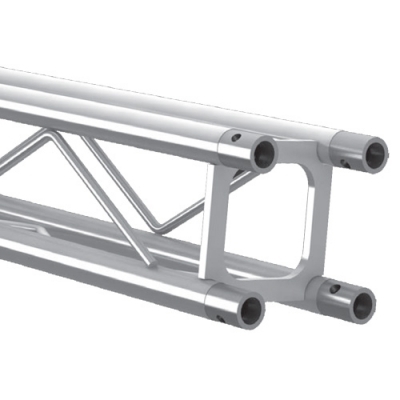

PRO14L500

PRO14L500

Pro-truss Pro 14 L500 Straight 500 mm

Contact us
PRO14L1000

PRO14L1000

Pro-truss Pro 14 L1000 Straight 1000 mm

Contact us
PRO14L1500

PRO14L1500

Pro-truss Pro 14 L1500 Straight 1500 mm

Contact us
PRO14L2000

PRO14L2000

Pro-truss Pro 14 L2000 Straight 2000 mm

Contact us
PRO14L2500

PRO14L2500

Pro-truss Pro 14 L2500 Straight 2500 mm

Contact us
PRO14L3000

PRO14L3000

Pro-truss Pro 14 L3000 Straight 3000 mm

Contact us

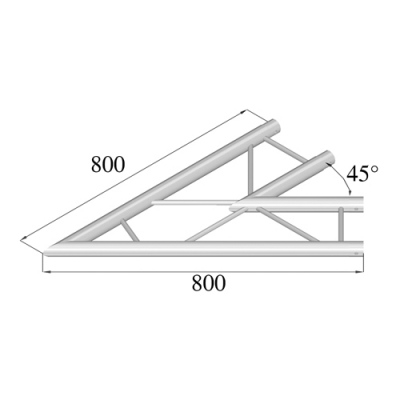

PRO22C190H

PRO22C190H

2 way corner 45° horizontal
Weight 1,6 kg

Contact us

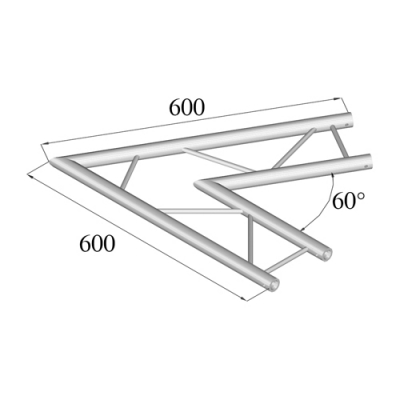

PRO22C200H

PRO22C200H

2 way corner 60° horizontal
Weight 1,0 kg

Contact us

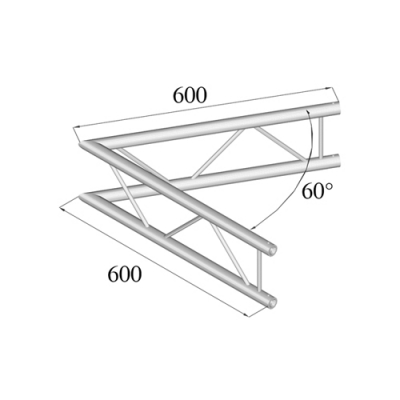

PRO22C200V

PRO22C200V

2 way corner 60° vertical
Weight 1,7 kg

Contact us

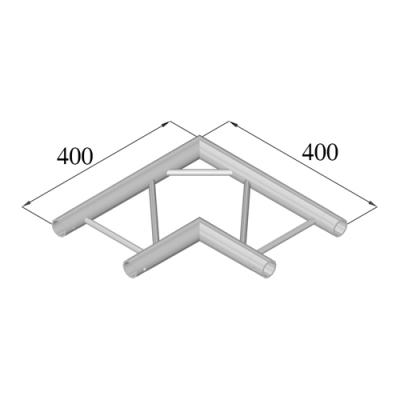

PRO22C210H

PRO22C210H

2 way corner 90° horizontal
Weight 0,9 kg

Contact us

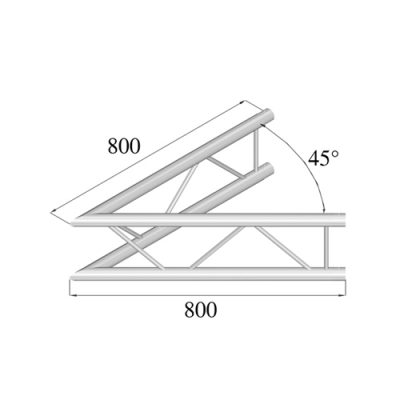

PRO22C190V

PRO22C190V

2 way corner 45° vertical
Weight 2,1 kg

Contact us

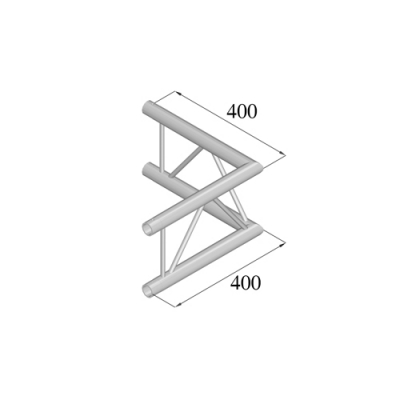

PRO22C210V

PRO22C210V

2 way corner 90° vertical
Weight 1,2 kg

Contact us

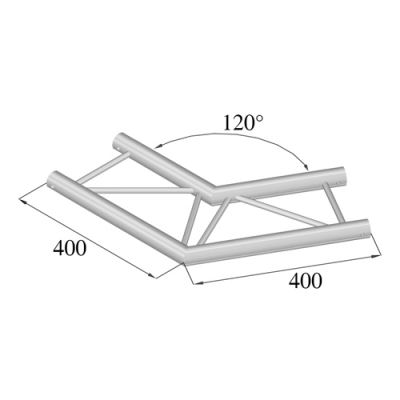

PRO22C220H

PRO22C220H

2 way corner 120° horizontal
Weight 1,1 kg

Contact us

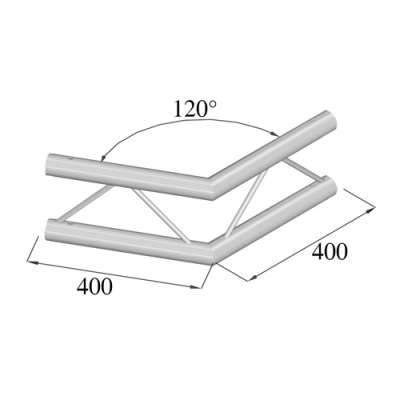

PRO22C220V

PRO22C220V

2 way corner 120° vertical
Weight 1,2 kg

Contact us

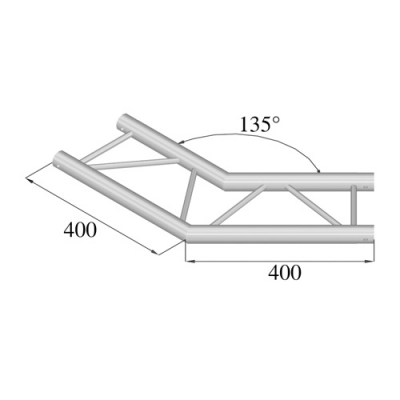

PRO22C230H

PRO22C230H

2 way corner 135° horizontal
Weight 1,1 kg

Contact us

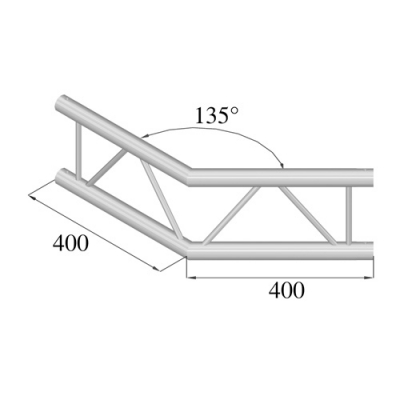

PRO22C230V

PRO22C230V

2 way corner 135° vertical
Weight 1,2 kg

Contact us

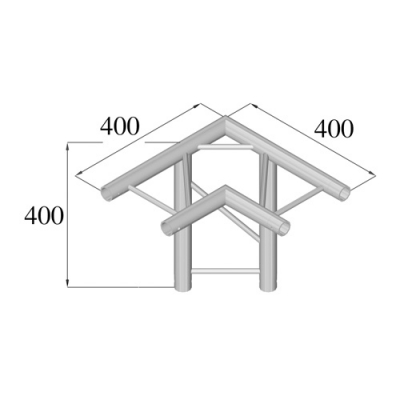

PRO22C310H

PRO22C310H

3 way corner 90° horizontal
Weight 1,5 kg

Contact us
PRO22C310V

PRO22C310V

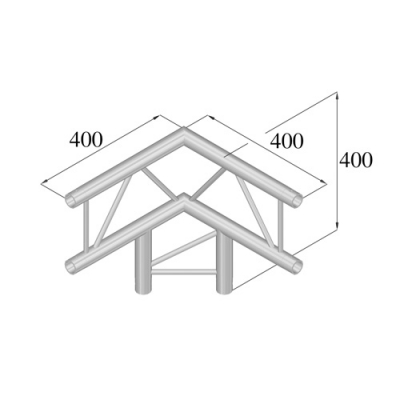

3 way corner 90° vertical
Weight 1,3 kg

Contact us

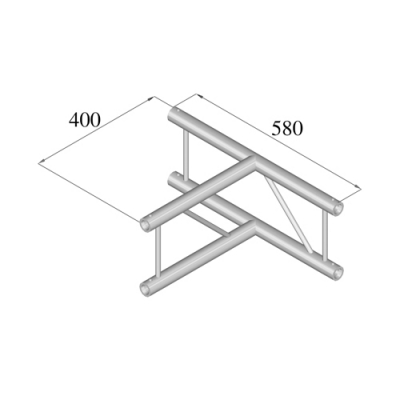

PRO22C360V

PRO22C360V

3 way T piece vertical
Weight 1,4 kg

Contact us

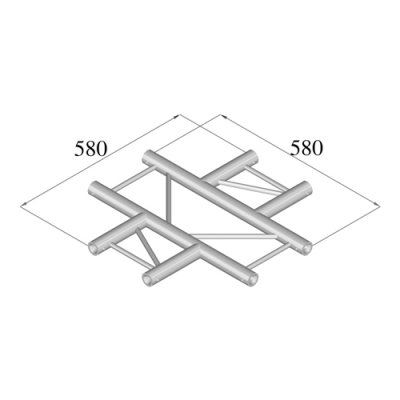

PRO22C410H

PRO22C410H

4 way cross piece horizontal
Weight 1,5 kg

Contact us

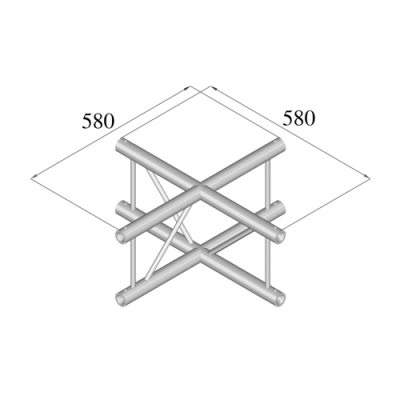

PRO22C410V

PRO22C410V

4 way cross piece vertical
Weight 1,7 kg

Contact us

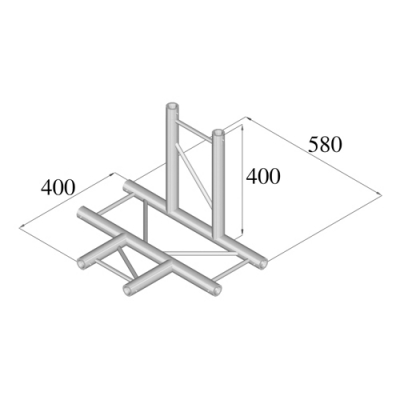

PRO22C420H

PRO22C420H

4 way T piece horizontal
Weight 1,7 kg

Contact us

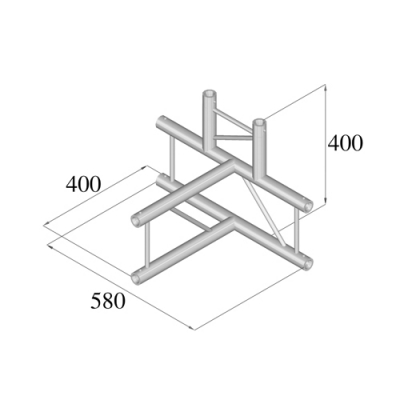

PRO22C420V

PRO22C420V

4 way T piece vertical
Weight 1,7 kg

Contact us
PRO22C440V

PRO22C440V

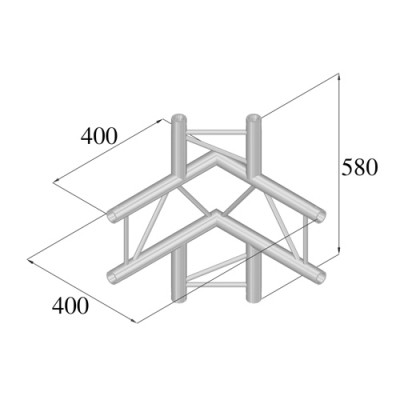

4 way corner 90° vertical
Weight 1,7 kg

Contact us

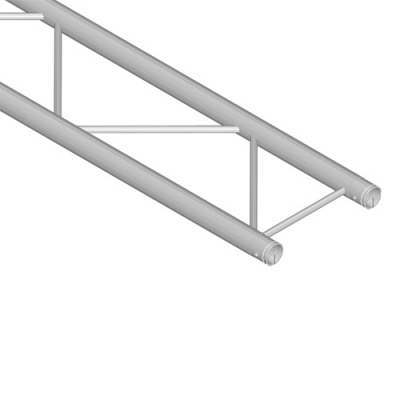

PRO22L500

PRO22L500

Pro-truss Pro 14 L500 Straight 500 mm

Contact us
PRO22L1000

PRO22L1000

Pro-truss Pro 14 L1000 Straight 1000 mm

Contact us
PRO22L1500

PRO22L1500

Pro-truss Pro 14 L1500 Straight 1500 mm

Contact us
PRO22L2000

PRO22L2000

Pro-truss Pro 14 L2000 Straight 2000 mm

Contact us
PRO22L2500

PRO22L2500

Pro-truss Pro 14 L2500 Straight 2500 mm

Contact us
PRO22L3000

PRO22L3000

Pro-truss Pro 14 L3000 Straight 3000 mm

Contact us
PRO22L3500

PRO22L3500

Pro-truss Pro 14 L3500 Straight 3500 mm

Contact us
PRO22L4000

PRO22L4000

Pro-truss Pro 14 L4000 Straight 4000 mm

Contact us

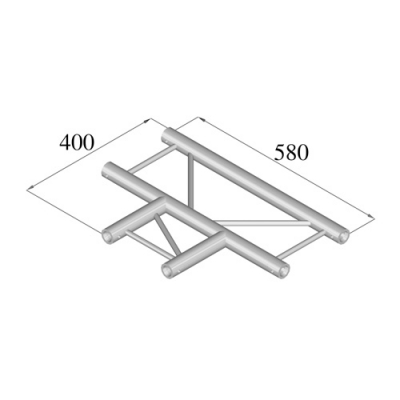

PRO22C350H

PRO22C350H

3 way T piece horizontal
Weight 1,2 kg

Contact us

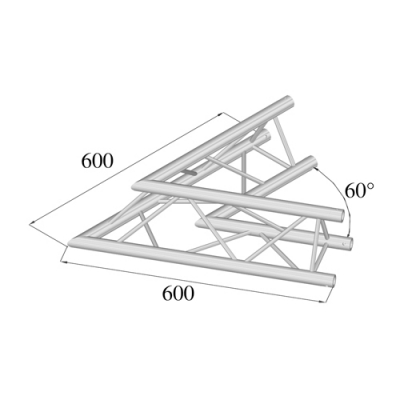

PRO23C200

PRO23C200

2 way corner 60°
Weight 2,2 kg

Contact us

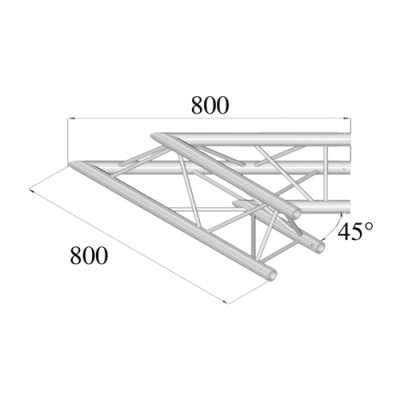

PRO23C190

PRO23C190

2 way corner 45°
Weight 2,6 kg

Contact us

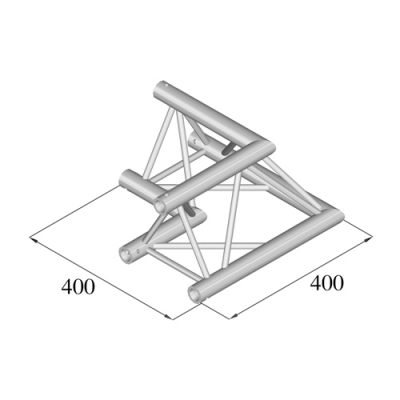

PRO23C210

PRO23C210

2 way corner 90°
Weight 1,6 kg

Contact us

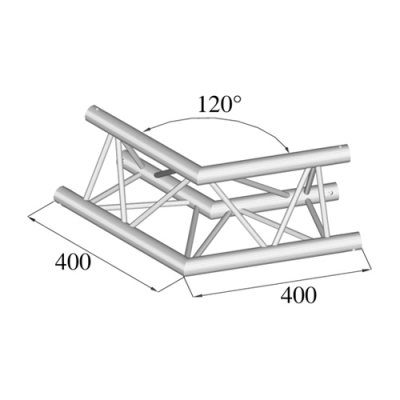

PRO23C220

PRO23C220

2 way corner 120°
Weight 1,8 kg

Contact us

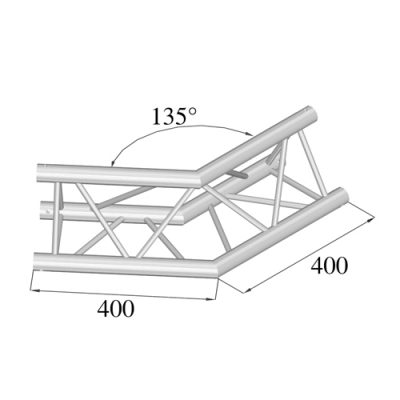

PRO23C230

PRO23C230

2 way corner 135°
Weight 1,8 kg

Contact us

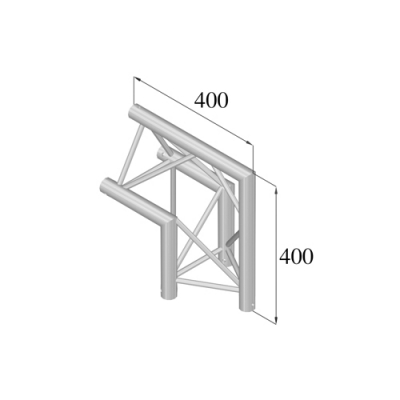

PRO23C240

PRO23C240

2 way corner 90° apex out
Weight 1,5 kg

Contact us

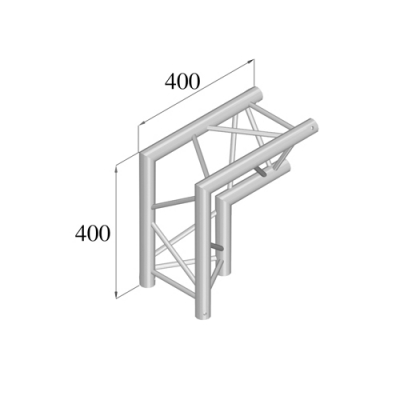

PRO23C250

PRO23C250

2 way corner 90° apex in
Weight 1,7 kg

Contact us

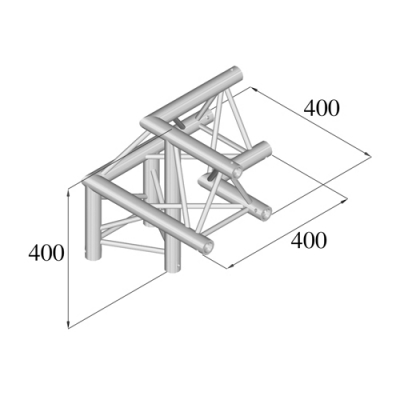

PRO23C310

PRO23C310

3 way corner 90° apex up right
Weight 2,3 kg

Contact us

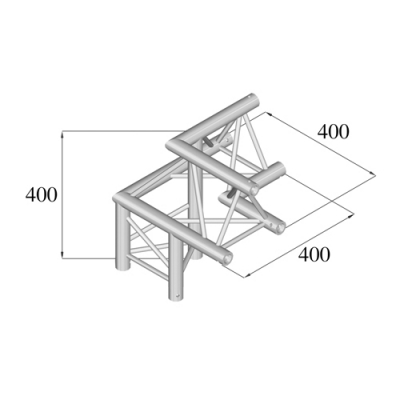

PRO23C320

PRO23C320

3 way corner 90° apex up left
Weight 2,3 kg

Contact us
PRO23C330

PRO23C330

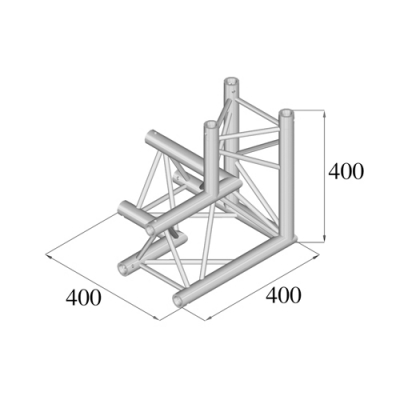

3 way corner 90° apex down right
Weight 2,3 kg

Contact us

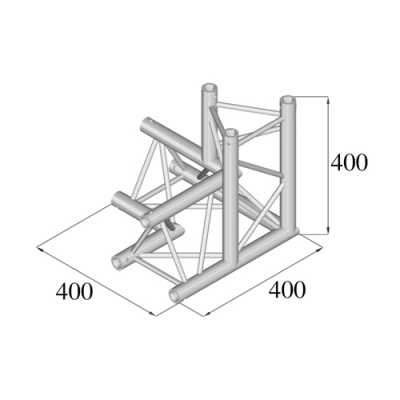

PRO23C340

PRO23C340

3 way corner 90° apex down left
Weight 2,3 kg

Contact us

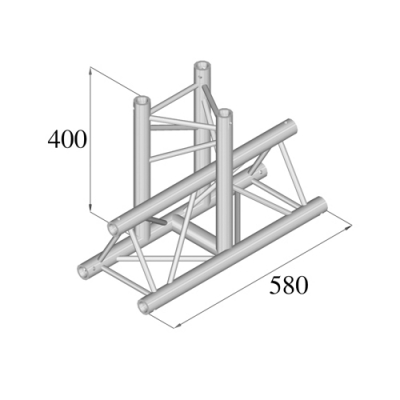

PRO23C350

PRO23C350

3 way vertical T piece apex down
Weight 2,4 kg

Contact us

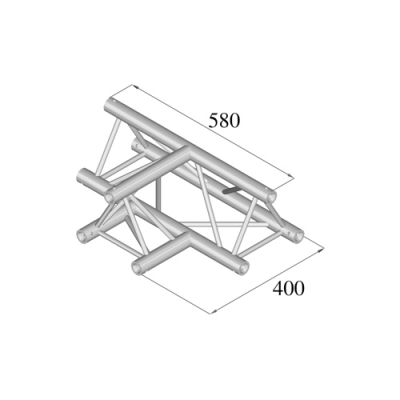

PRO23C360

PRO23C360

3 way horizontal T piece
Weight 2,1 kg

Contact us
PRO23C370

PRO23C370

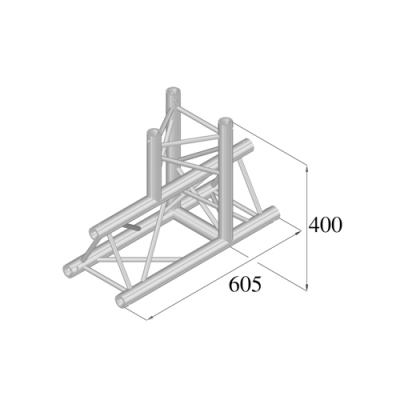

3 way vertical T piece apex up
Weight 2,4 kg

Contact us

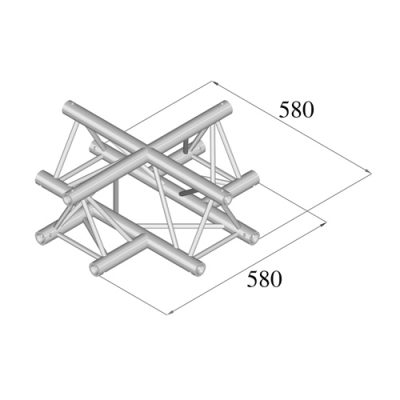

PRO23C410

PRO23C410

4 way cross piece
Weight 2,7 kg

Contact us

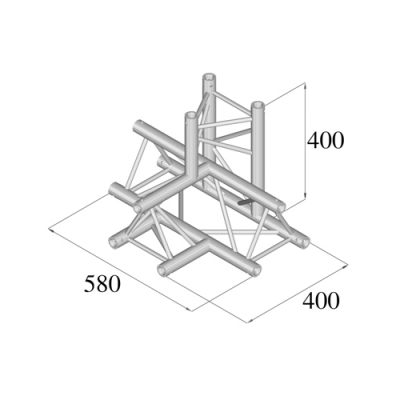

PRO23C420

PRO23C420

4 way T piece apex down
Weight 2,8 kg

Contact us

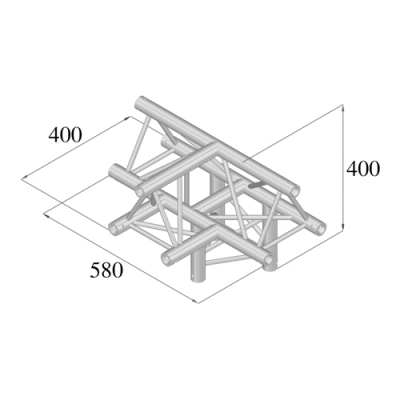

PRO23C430

PRO23C430

4 way T piece apex up
Weight 2,8 kg

Contact us

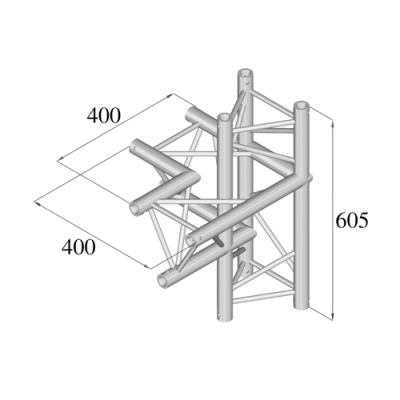

PRO23C440

PRO23C440

4 way corner 90° right
Weight 3,0 kg

Contact us

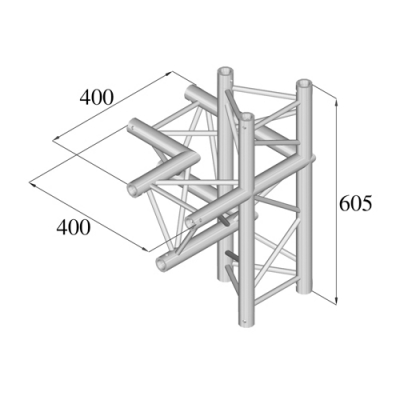

PRO23C450

PRO23C450

4 way corner 90° left
Weight 3,0 kg

Contact us

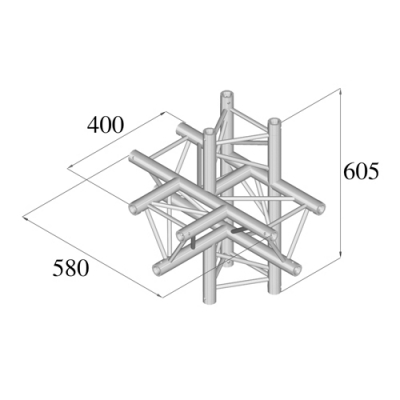

PRO23C510

PRO23C510

5 way cross piece apex down
Weight 3,5 kg

Contact us

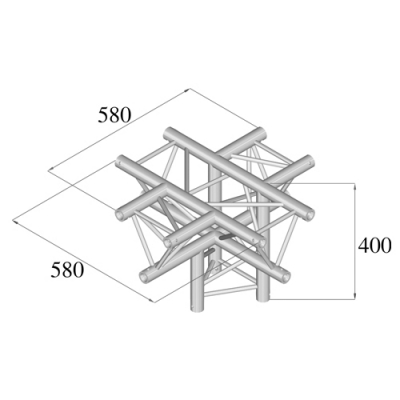

PRO23C530

PRO23C530

5 way cross piece apex down
Weight 3,2 kg

Contact us

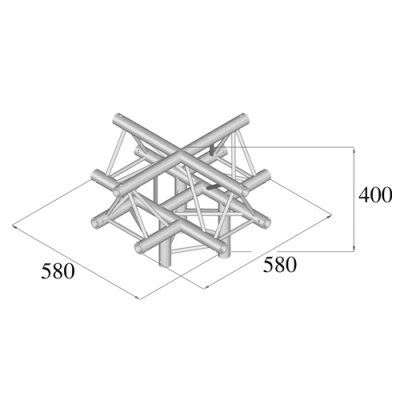

PRO23C520

PRO23C520

5 way cross piece apex up
Weight 3,2 kg

Contact us

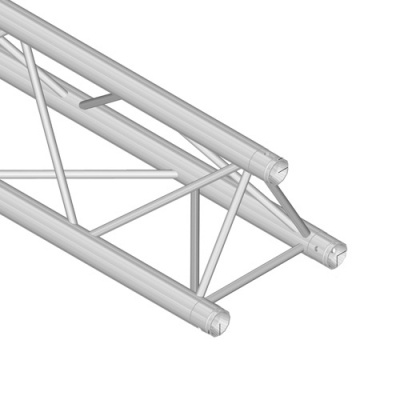

PRO23L500

PRO23L500

Pro-truss Pro 23 L500 Straight 500 mm

Contact us
PRO23L1000

PRO23L1000

Pro-truss Pro 23 L1000 Straight 1000 mm

Contact us
PRO23L1500

PRO23L1500

Pro-truss Pro 23 L1500 Straight 1500 mm

Contact us
PRO23L2000

PRO23L2000

Pro-truss Pro 23 L2000 Straight 2000 mm

Contact us
PRO23L2500

PRO23L2500

Pro-truss Pro 23 L2500 Straight 2500 mm

Contact us
PRO23L3000

PRO23L3000

Pro-truss Pro 23 L3000 Straight 3000 mm

Contact us
PRO23L3500

PRO23L3500

Pro-truss Pro 23 L3500 Straight 3500 mm

Contact us
PRO23L4000

PRO23L4000

Pro-truss Pro 23 L4000 Straight 4000 mm

Contact us
PRO24C190

PRO24C190

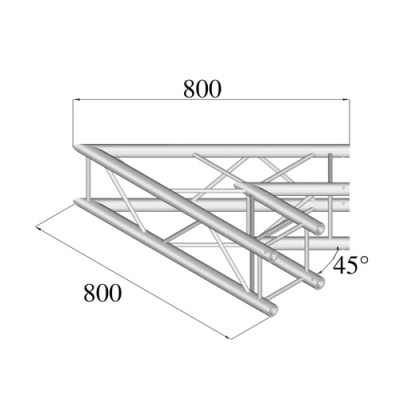

2 way corner 45°
Weight 3,5 kg

Contact us
PRO24C200

PRO24C200

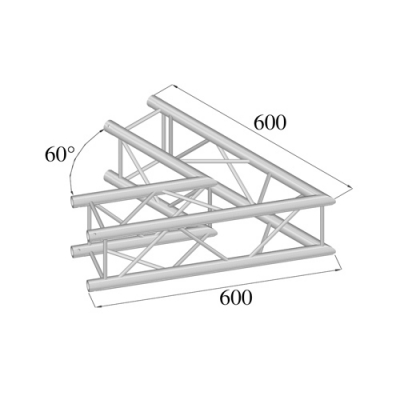

2 way corner 60°
Weight 2,3 kg

Contact us
PRO24C210

PRO24C210

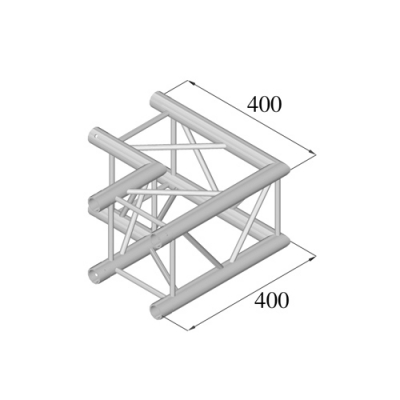

2 way corner 90°
Weight 2,1 kg

Contact us

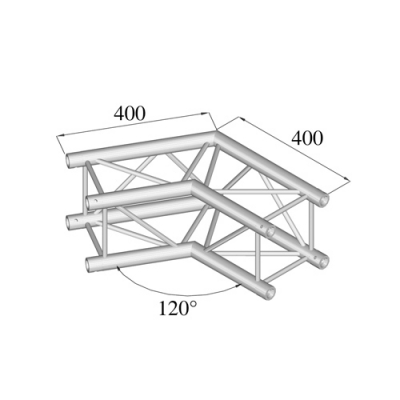

PRO24C220

PRO24C220

2 way corner 120°
Weight 2,4 kg

Contact us
PRO24C230

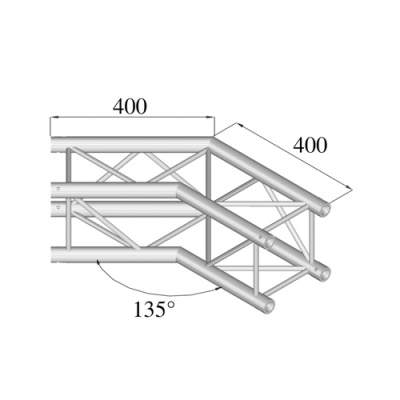

PRO24C230

2 way corner 135°
Weight 2,5 kg

Contact us

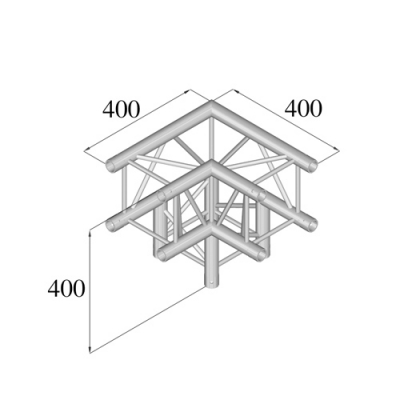

PRO24C300

PRO24C300

3 way corner 90°
Weight 2,7 kg

Contact us

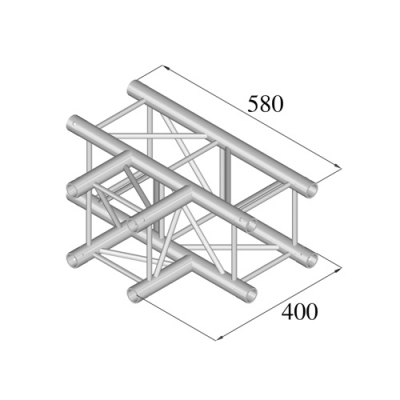

PRO24C350

PRO24C350

3 way T piece
Weight 2,7 kg

Contact us

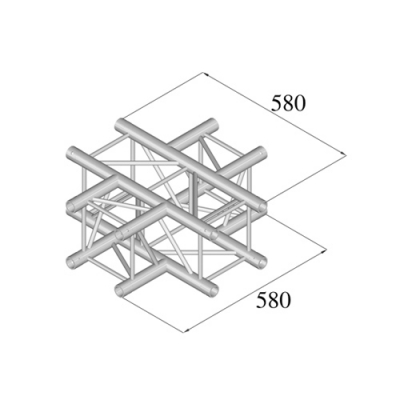

PRO24C410

PRO24C410

4 way cross piece
Weight 3,5 kg

Contact us

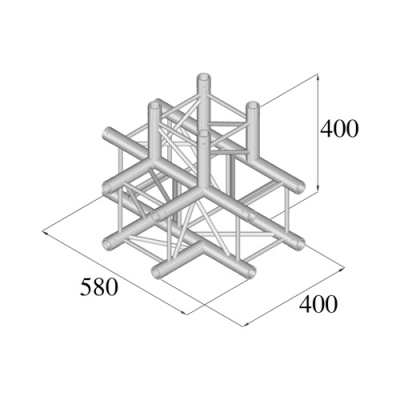

PRO24C420

PRO24C420

4 way T piece
Weight 3,5 kg

Contact us
PRO24C510

PRO24C510

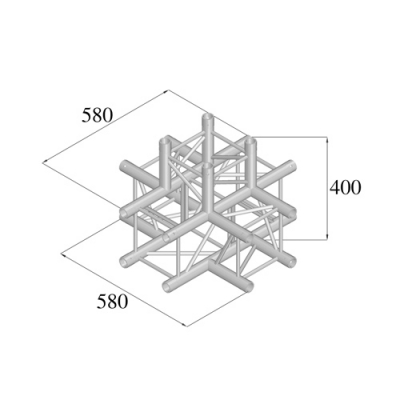

5 way cross piece
Weight 4,3 kg

Contact us

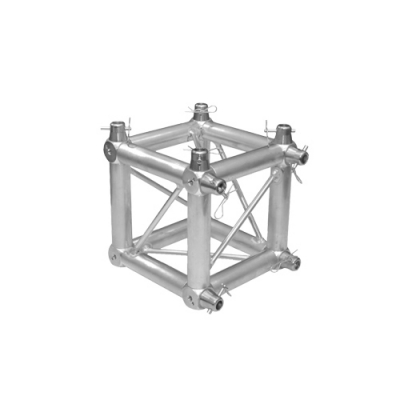

PRO24block

PRO24block

Corner block
Weight 3,8 kg

Contact us

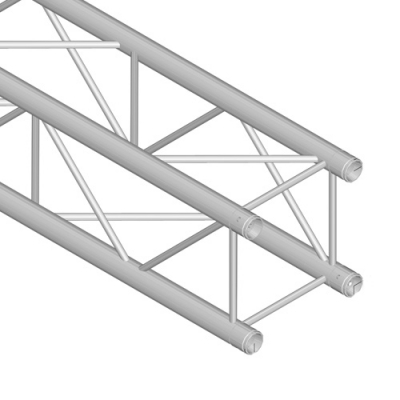

PRO24L500

PRO24L500

Pro-truss Pro 24 L500 Straight 500 mm

Contact us
PRO24L1000

PRO24L1000

Pro-truss Pro 24 L1000 Straight 1000 mm

Contact us
PRO24L1500

PRO24L1500

Pro-truss Pro 24 L1500 Straight 1500 mm

Contact us
PRO24L2000

PRO24L2000

Pro-truss Pro 24 L2000 Straight 2000 mm

Contact us
PRO24L2500

PRO24L2500

Pro-truss Pro 24 L2500 Straight 2500 mm

Contact us
PRO24L3000

PRO24L3000

Pro-truss Pro 24 L3000 Straight 3000 mm

Contact us
PRO24L3500

PRO24L3500

Pro-truss Pro 24 L3500 Straight 3500 mm

Contact us
PRO24L4000

PRO24L4000

Pro-truss Pro 24 L4000 Straight 4000 mm

Contact us

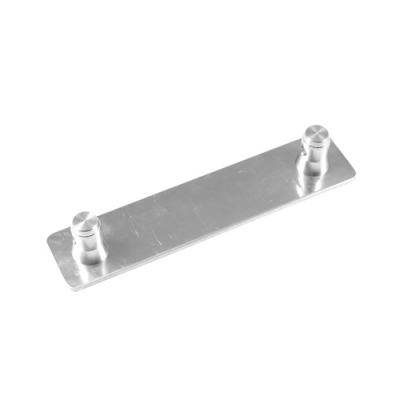

PRO22FLOOR

PRO22FLOOR

Base plate for PRO22 (M)

Contact us

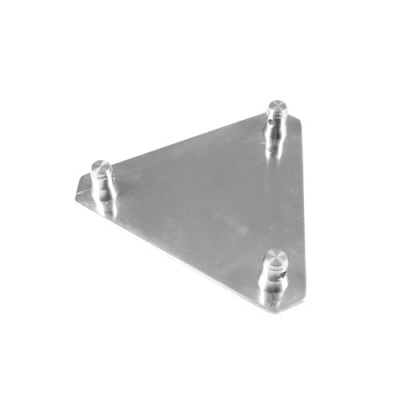

PRO23FLOOR

PRO23FLOOR

Base plate for PRO23 (M)

Contact us

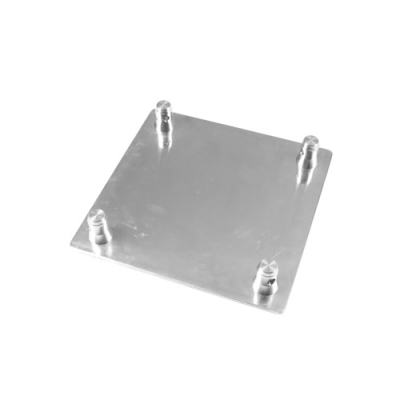

PRO24FLOOR

PRO24FLOOR

Base plate for PRO24 (M)

Contact us
PROSPIGOTK

PROSPIGOTK

Conical connector diam. 30mm

Contact us
PROPINK

PROPINK

Pin diam. 7mm (M6)

Contact us
pro halfconnector

pro halfconnector

Halfconnector male aluminium with thread (M8)

Contact us

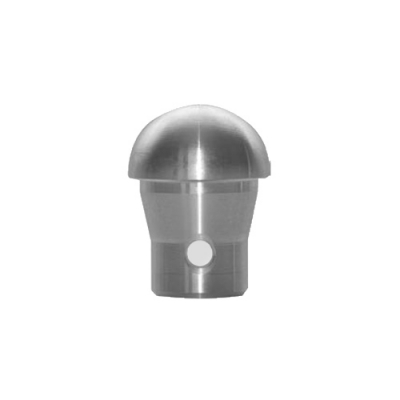

PRO ENDCAP

PRO ENDCAP

Endcap for PRO22-24

Contact us
